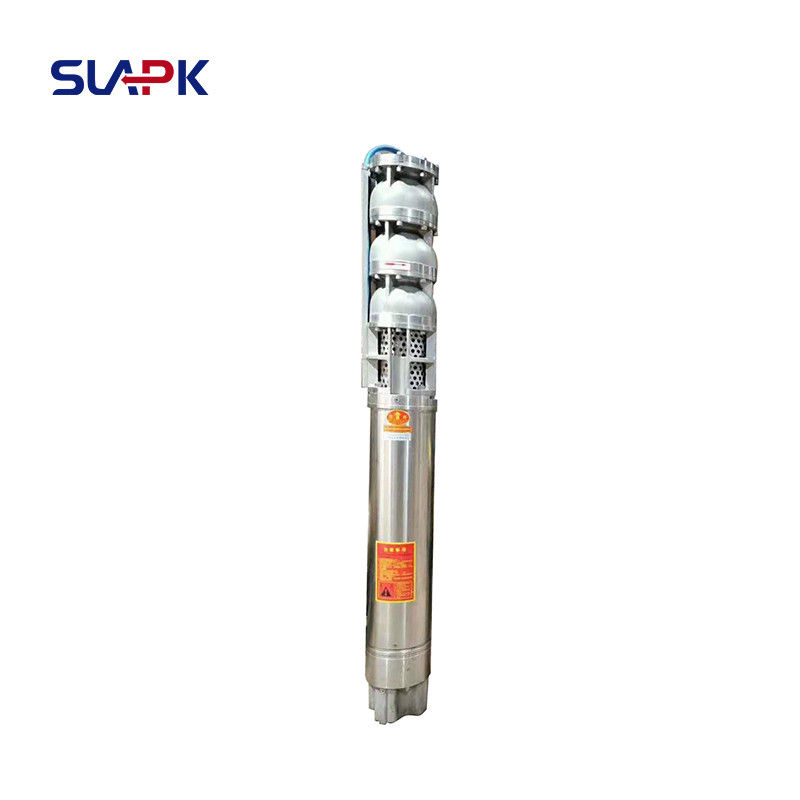

Custom Stainless Steel Submersible Pump for Drilling Rig, Offshore Platform & Ship

Built for Extreme Marine & Offshore Environments

Our custom stainless steel submersible pump is specifically engineered for offshore drilling rigs, marine vessels, shipyards, and offshore platforms where corrosion resistance, reliability, and continuous-duty performance are critical. Manufactured with marine-grade stainless steel materials such as SS304, SS316, SS316L, Duplex Stainless Steel, or Super Duplex, this pump is designed to withstand aggressive seawater, salt spray, high humidity, and harsh industrial liquids.

Unlike standard cast iron pumps that rapidly corrode in offshore conditions, stainless steel submersible pumps provide superior resistance against chloride corrosion, pitting, and chemical attack, making them ideal for long-term marine operation.

Product Features

Marine-Grade Stainless Steel Construction

The pump body, shaft, impeller, fasteners, and motor housing can be manufactured using high-grade stainless steel materials:

• SS304 for general corrosion resistance
• SS316 / SS316L for seawater and high-chloride applications
• Duplex Stainless Steel for enhanced strength and corrosion resistance
• Super Duplex Stainless Steel for extreme offshore conditions

SS316L is widely used in marine and offshore applications because of its excellent resistance to seawater corrosion and chloride-induced pitting.

Designed for Offshore & Shipboard Applications

This offshore submersible pump is suitable for:

• Offshore drilling platforms
• Jack-up rigs
• FPSO systems
• Ship ballast water transfer
• Bilge drainage
• Seawater circulation systems
• Deck washing systems
• Emergency dewatering
• Mine and tunnel drainage
• Desalination plants
• Coastal engineering projects
• Marine firefighting water supply

Its fully submerged motor structure allows stable operation even in confined offshore installations where space is limited.

High Corrosion Resistance

Marine environments expose equipment to continuous saltwater immersion, high humidity, and aggressive chlorides. Stainless steel materials form a self-protective oxide layer that helps prevent rust and structural degradation.

Optional anti-corrosion configurations include:

• Duplex mechanical seals
• Silicon carbide (SiC/SiC) seal faces
• Fluororubber or Viton sealing components
• Epoxy-coated cables
• Cathodic protection compatibility

Heavy-Duty Continuous Operation

The pump is designed for 24/7 industrial-duty performance with:

• IP68 waterproof motor protection
• High-efficiency copper winding motor
• Thermal overload protection
• Low vibration operation
• Stable flow under variable load conditions
• Optional VFD compatibility

Continuous-duty offshore pumps require proper cooling and stable operating conditions to maximize service life.

Technical Specifications

Custom specifications are available according to project requirements.

Advantages of Stainless Steel Offshore Pumps

Longer Service Life

Compared with conventional cast iron pumps, stainless steel pumps significantly reduce corrosion-related failures in seawater environments.

Reduced Maintenance Costs

The corrosion-resistant structure minimizes rust buildup, impeller wear, and seal damage, lowering maintenance frequency for offshore operators.

Reliable Performance in Harsh Conditions

Designed for continuous exposure to:

• Saltwater
• Sand particles
• Humidity
• High chloride concentrations
• Industrial wastewater
• Chemical liquids

Customization Options

We provide OEM and project-based customization services, including:

• Customized voltage and frequency
• Explosion-proof motors
• High-temperature resistance
• Wear-resistant impellers
• Marine certification support
• Special flange standards
• Long cable configurations
• Control panels and automation systems
• Remote monitoring integration

Why Choose Our Offshore Submersible Pumps

• More than 8 years of export experience
• Professional pump manufacturing and testing system
• Strict quality inspection before shipment
• Customized engineering solutions
• Stable performance in offshore applications
• Fast technical support and after-sales service
• Exported to over 100 countries

Each pump undergoes hydraulic performance testing, insulation testing, leakage testing, and operational inspection before delivery.

Application Industries

Offshore Oil & Gas

Used for platform drainage, seawater transfer, cooling circulation, and emergency pumping systems.

Marine & Shipbuilding

Suitable for ship bilge systems, ballast systems, dock drainage, and onboard seawater handling.

Desalination Plants

Ideal for seawater intake and high-chloride water transportation systems.

Mining & Industrial Projects

Handles corrosive industrial liquids, wastewater, and mine drainage applications.

FAQ

What material is best for seawater submersible pumps?

SS316L and Duplex Stainless Steel are commonly recommended for seawater applications because they offer superior resistance to chloride corrosion and pitting.

Can the pump operate continuously underwater?

Yes. The pump is designed for continuous submerged operation with IP68 protection and double mechanical sealing.

Is explosion-proof configuration available?

Yes. Explosion-proof motors can be customized for offshore oil and gas environments.

Can you customize voltage and frequency?

Yes. We support customized motor configurations including 380V, 415V, 440V, 460V, 50Hz, and 60Hz.

What certifications can be provided?

CE, ISO, ATEX, DNV, ABS, and BV certifications are available depending on project requirements.
