200QJ72-40-18KW Deep Well Submersible Pump with 18 kW Motor Power, 72 m³/h Flow Rate, and 40 m Head for Agricultural and Industrial Water Supply

محصولات

پمپ سانتریفیوژ چند مرحله ای افقی

پمپ عمودی زیر آب

تماس با ما

enquiry02@apkpump.com

86 17537187726

حالا تماس بگیرید

200QJ72-40-18KW Deep Well Submersible Pump with 18 kW Motor Power, 72 m³/h Flow Rate, and 40 m Head for Agricultural and Industrial Water Supply

MOQ:	1 مجموعه
قیمت:	Please feel free to contact us
بسته بندی استاندارد:	پمپ شناور چاه عمیق توسط جعبه چوبی یا به درخواست شما بسته بندی می شود.
دوره تحویل:	2-5 روز کاری پس از تایید پرداخت
روش پرداخت:	L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام
ظرفیت تامین:	8563 مجموعه در ماه

اطلاعات جزئیات

توضیحات محصول

اطلاعات جزئیات

محل منبع

هنان، چین

نام تجاری

گواهی

ISO;CE,BV; TUV; CCC; SGS; SASO

شماره مدل

QJ(H)

35-388 متر

جریان:

18-214 متر مکعب در ساعت

قطر پمپ:

7 8 10 12 اینچ

قدرت موتور:

37 کیلووات 50 اسب بخار

شستشو:

380v/440v/660v یا به عنوان درخواست شما

فرکانس:

3 فاز 50Hz/60Hz

ماده پمپاژ:

چدن/فولاد ضد زنگ

ODM/OEM:

قبول کنید

توضیحات محصول

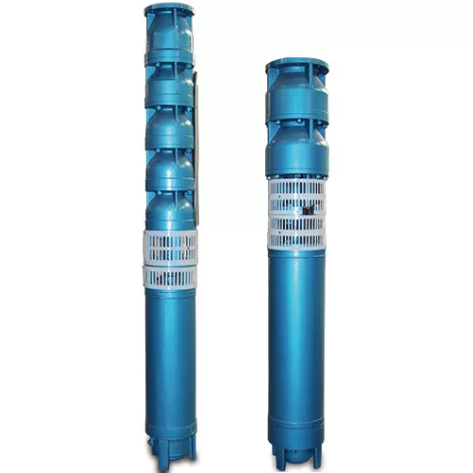

200QJ72-40-18KW Deep Well Submersible Pump for Agricultural, Industrial and Municipal Water Supply

The 200QJ72-40-18KW Deep Well Submersible Pump is a high-performance vertical multistage centrifugal pump designed for deep well water extraction and clean water transfer. Engineered for continuous-duty operation, this pump delivers a flow rate of 72 m³/h and a head of 40 meters, making it an ideal solution for agricultural irrigation, municipal water supply, industrial water systems, construction sites, and groundwater extraction.

Powered by an 18 kW submersible motor, operating at 440V, 60Hz, three-phase, the pump provides stable performance, high efficiency, and low operating costs. The compact submerged design eliminates suction limitations, reduces noise, and ensures reliable operation even in demanding environments.

Whether you require a dependable pump for irrigation projects, factory water supply, or deep well applications, the 200QJ72-40-18KW Submersible Pump offers long service life, easy installation, and consistent hydraulic performance.

Key Features

High Hydraulic Efficiency

The optimized multistage impeller design ensures smooth water flow with reduced hydraulic losses, improving pumping efficiency while lowering energy consumption.

Reliable Deep Well Performance

Designed specifically for deep well installations, the pump operates completely underwater, preventing cavitation and maintaining stable water delivery.

Durable Construction

Manufactured using high-quality cast iron components with precision machining, the pump provides excellent mechanical strength and resistance to long-term operation.

Optional materials include:

Cast Iron
SS304 Stainless Steel
SS316 Stainless Steel
Duplex Stainless Steel 2205
Super Duplex Stainless Steel 2507

These material options allow the pump to handle different water qualities, including freshwater, slightly corrosive water, and seawater.

Low Maintenance

The integrated motor and pump structure minimizes installation space while simplifying maintenance. High-quality bearings and mechanical seals help extend service intervals.

Continuous Operation

The motor is designed for continuous-duty operation with excellent cooling performance, making it suitable for long-term industrial and agricultural applications.

Technical Specifications

Item	Specification
Model	200QJ72-40-18KW
Pump Type	Deep Well Submersible Pump
Flow Rate	72 m³/h
Head	40 m
Motor Power	18 kW
Voltage	440V
Frequency	60Hz
Phase	3 Phase
Discharge Diameter	100 mm
Installation	Vertical
Medium	Clean Water
Water Temperature	Up to 20°C (Standard)

Typical Applications

Agricultural irrigation
Farm water supply
Deep groundwater extraction
Municipal water supply systems
Industrial process water
Construction dewatering
Landscape irrigation
Water transfer projects
Rural drinking water systems
Reservoir water pumping

Product Advantages

Compared with traditional surface pumps, deep well submersible pumps provide several important advantages:

No priming required
Reduced installation footprint
Lower operating noise
Stable water delivery
High pumping efficiency
Lower maintenance costs
Reliable continuous operation
Suitable for deep water levels

These advantages make the pump an ideal choice for both commercial and industrial users.

Quality Control

Every pump is manufactured under strict quality management procedures. Before shipment, each unit undergoes comprehensive testing, including:

Performance testing
Flow and head verification
Motor insulation testing
Electrical safety inspection
Noise testing
Vibration testing
Pressure testing

This ensures every pump delivered to customers meets design specifications and international quality standards.

Why Choose SLAPK Deep Well Pumps?

Zhengzhou Shenlong Pump Industry Co., Ltd. has decades of experience in manufacturing submersible pumps for global markets. Our products are exported to numerous countries and are widely recognized for their stable quality, dependable performance, and customizable solutions.

We provide:

OEM & ODM Manufacturing
Customized Voltage (220V-11kV)
50Hz & 60Hz Motors
Stainless Steel Material Options
Fast Delivery
Technical Selection Support
Professional After-sales Service

Frequently Asked Questions (FAQ)

Q1. What water can this pump handle?

This model is designed for clean water or slightly contaminated water without large solid particles.

Q2. Can it operate continuously?

Yes. The motor is designed for continuous operation when fully submerged under appropriate working conditions.

Q3. Is 60Hz available?

Yes. This model operates at 440V, 60Hz, 3 Phase as specified.

Q4. Can different materials be customized?

Yes. Cast iron, SS304, SS316, Duplex 2205, and Super Duplex 2507 are available according to application requirements.

Q5. Do you provide OEM service?

Yes. We offer OEM branding, customized nameplates, packaging, voltage, cable length, and material configurations.
